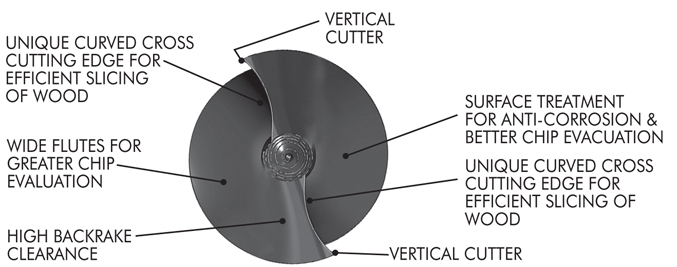

Wood Augers with exclusive curved cutting edge geometry
edges delivers a PROGRESSIVE CUTTING EDGE ACTION.
The curved cutting edges simultaneously move forwards and sideways along the wood grain (scything action) creating a slicing-peeling action that requires less cutting force. Edges stay sharper longer. Other brand augers have a straight edge bulldozing cutting action resulting in high cutting loads, slower drilling and reduced productivity.
Features include
- > High Performance unique 4 cutting edges
- > Designed for toughest Australian hardwoods
- > Drills faster and easier than any other brand auger
- > Surface Treated with non-stick anti-corrosion coating for better chip evacuation
- > Excellent feed rate with greater chip evacuation
- > Easy to sharpen with round or half round file
Front view of Auger
For advice on how to sharpen and care for your auger, or warranty terms, go to CUSTOMER FAQ, see video above or view instructions below.
Available in the following sizes
| 30010 | 3/8” (10mm) diameter x 12” (300mm) long |
| 30011 | 7/16” (11mm) diameter x 12” (300mm) long |
| 30013 | 1/2” (13mm) diameter x 14” (360mm) long |
| 30014 | 9/16” (14mm) diameter x 14” (360mm) long |
| 30016 | 5/8” (16mm) diameter x 14” (360mm) long |
| 30018 | 11/16” (18mm) diameter x 14” (360mm) long |
| 30019 | 3/4” (19mm) diameter x 14” (360mm) long |
| 30022 | 7/8” (22mm) diameter x 14” (360mm) long |
| 30025 | 1” (25mm) diameter x 14” (360mm) long |
| 30028 | 1 1/8” (28mm) diameter x 14” (360mm) long |
| 30032 | 1 1/4” (32mm) diameter x 14” (360mm) long |
Extra Long Augers
| 30116 | 5/8” (16mm) diameter x 30” (760mm) long |
| 30119 | 3/4” (19mm) diameter x 30” (760mm) long |
| 30122 | 7/8” (22mm) diameter x 30” (760mm) long |
| 30124 | 1” (25mm) diameter x 30” (760mm) long |
NEW HARDWOOD DESIGNED AUGERS
(also drills softwood)
Atom augers are made from high carbon steel
selectively heat treated
with Atom designed
toughened lead screws
for hard wood.
Atom Augers have a 1/2” (12.7mm) shank and slot. Illustration shows fitted to Atom Engine Driven Drills and Atom Chain Saw Drill Attachment.
The Atom system is self-locking and will not loosen in use. Proven over 50 years as the superior, unbreakable locking system.
Atom Augers can be used with standard chuck system.
